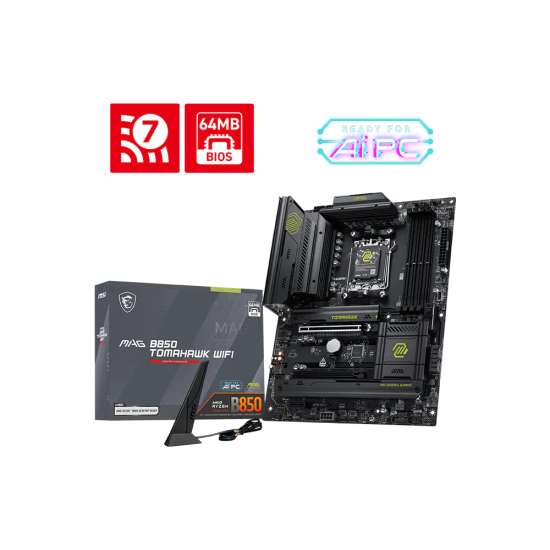

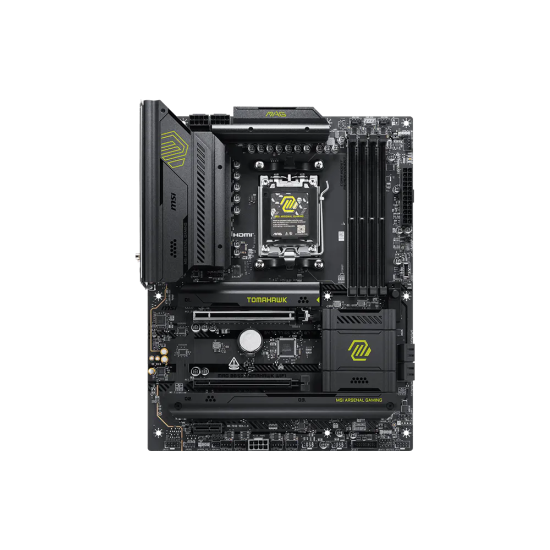

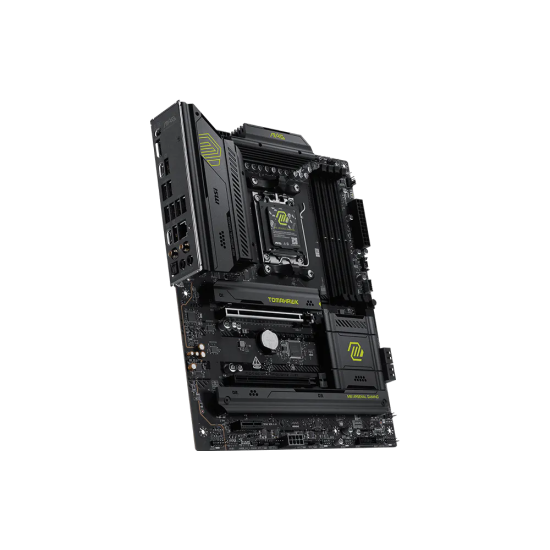

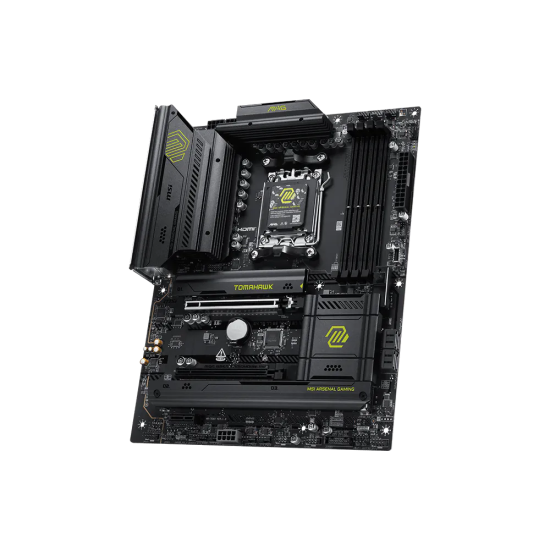

MSI MAG B850 TOMAHAWK WIFI

MSI
Socket AM5
1x HDMI™; Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
AMD B850
2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M2_2 slot; • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors); • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors); M2_3 slot; • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors); * Please refer to the manual for M.2 SSD heatsink restrictions
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only

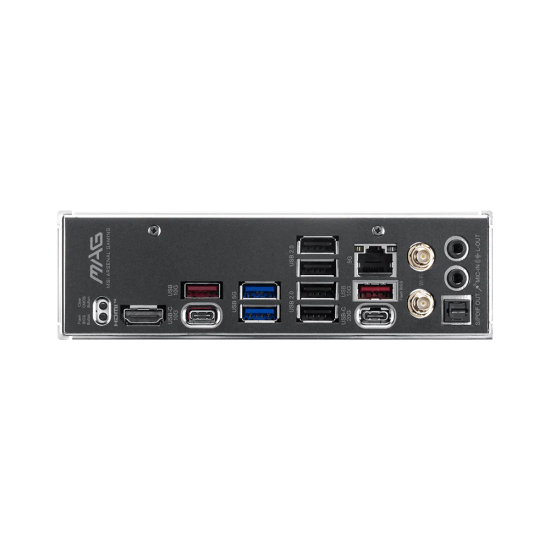

Clear CMOS Button; USB 10Gbps Type-A; USB 5Gbps Type-A; USB 2.0; 5G LAN; Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; HDMI™; USB 10Gbps Type-C; USB 20Gbps Type-C; USB 10Gbps Type-A; Optical S/PDIF Out
4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 2x Direct OC Jumper (JBCLK); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-bit/384kHz playback on front panel; Supports S/PDIF output
Realtek® 8126VB 5G LAN
Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth® 5.4**, MLO, 4KQAM; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Supports Bluetooth® 5.4**, MLO, 4KQAM
Support for Windows® 11 64-bit
4x EZ Debug LED; 1x EZ Memory Detection LED
ATX; 243.84mmx304.8mm
