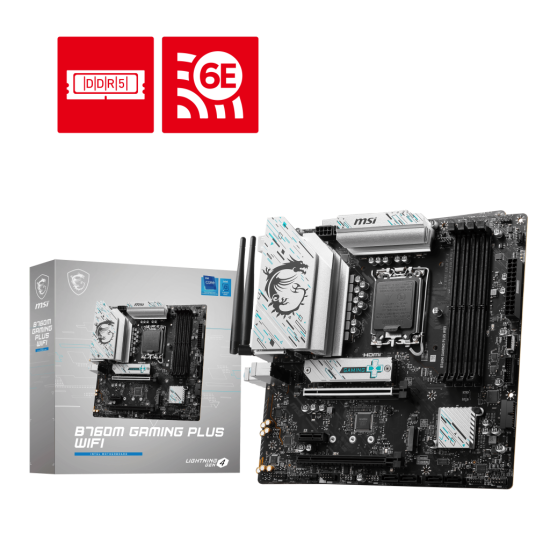

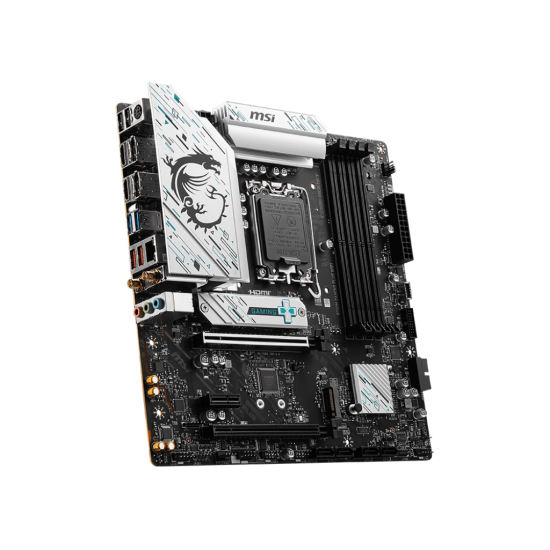

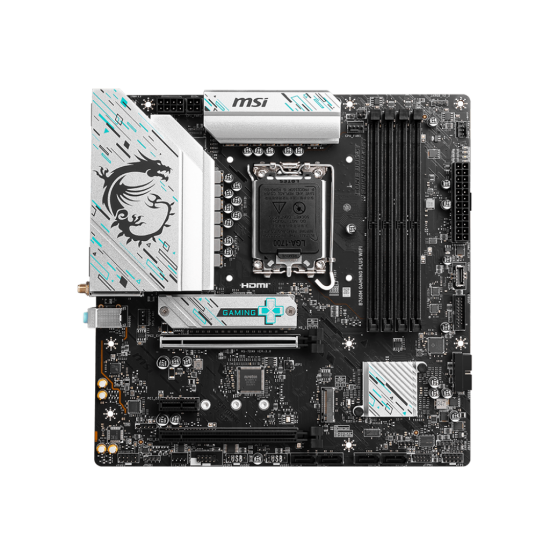

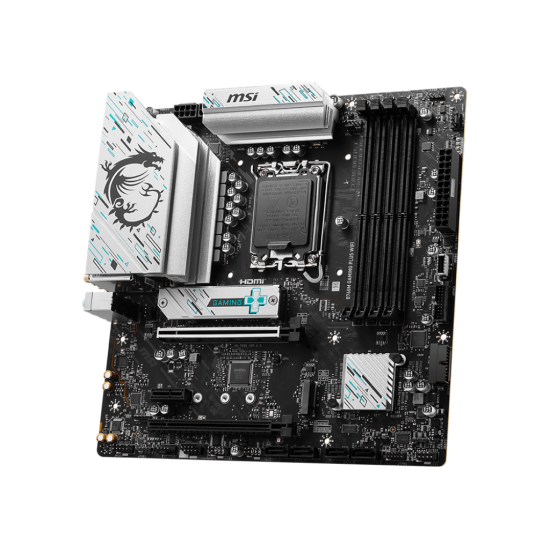

MSI B760 4xDDR5 4xSATA3 RAID 2xHDMI 2xDP 2xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi

2x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 2x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*
INTEL B760
2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

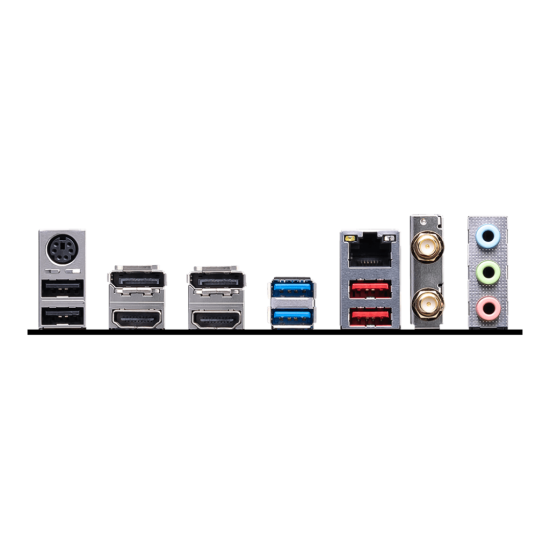

Keyboard / Mouse; DisplayPort; USB 3.2 Gen 1 5Gbps (Type-A); 2.5G LAN; Wi-Fi / Bluetooth; USB 2.0; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); Audio Connectors
1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen1 Type C ports
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Realtek® RTL8125BG 2.5G LAN
mATX,243.84mmx243.84mm
Support for Windows® 11 64-bit, Windows® 10 64-bit
Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA
36 Months
