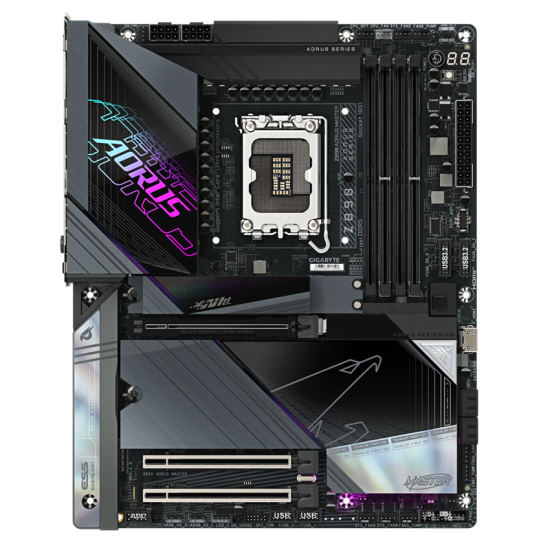

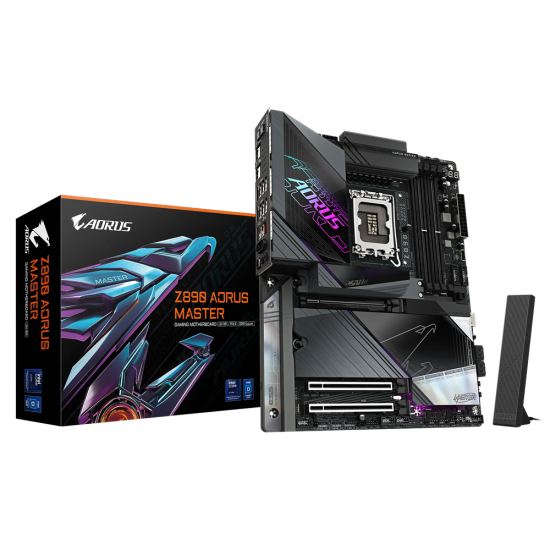

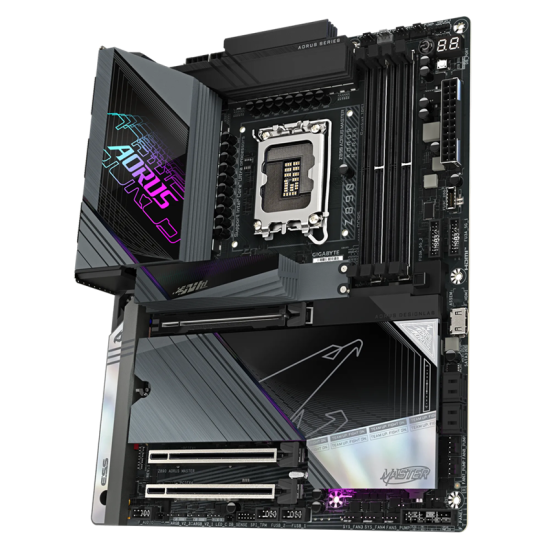

GB Z890 4xDDR5 4xSATA3 RAID DP 4xM2 GLAN 3xPCIEx16 WiFI

Manufacturer GIGABYTE

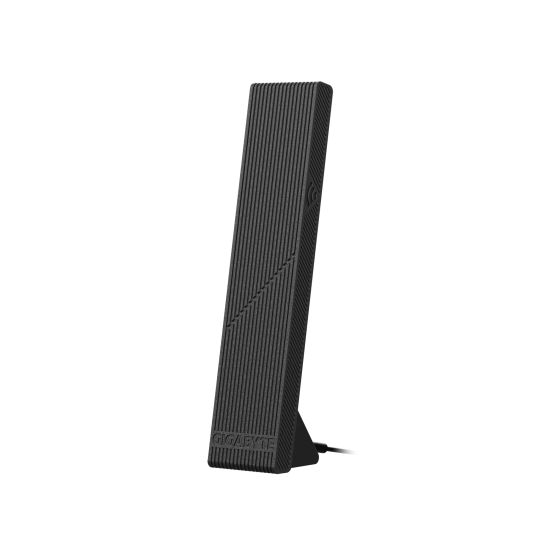

Wireless Intel® Wi-Fi 7 BE200NGW;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 320MHz wireless standard;(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.;** Wi-Fi 7 channels on 6 GHz band availability depends on individual countrys regulations.
Memory type Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;Support CUDIMM memory module;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Features Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
CPUs supported LGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU;* Please refer to "CPU Support List" for more information.
Chipset Intel® Z890 Express Chipset
Graphics Integrated Graphics Processor-Intel® HD Graphics support;- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs;When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).;When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).;* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.);* Support for DisplayPort 2.1 version and HDCP 2.3;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version.;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time
Expansion Slots CPU;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.;Chipset;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage CPU;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU);Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
I/O CPU;- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel;*Support up to 40Gbps with Thunderbolt devices;*Support up to 20Gbps with USB4 devices;*Support up to 10Gbps with USB 3.2 devices;Chipset;- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;Chipset+USB 3.2 Gen 2x2 Hub;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;Chipset+2 USB 3.2 Gen 1 Hubs;- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers);Chipset+2 USB 2.0 Hubs;- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

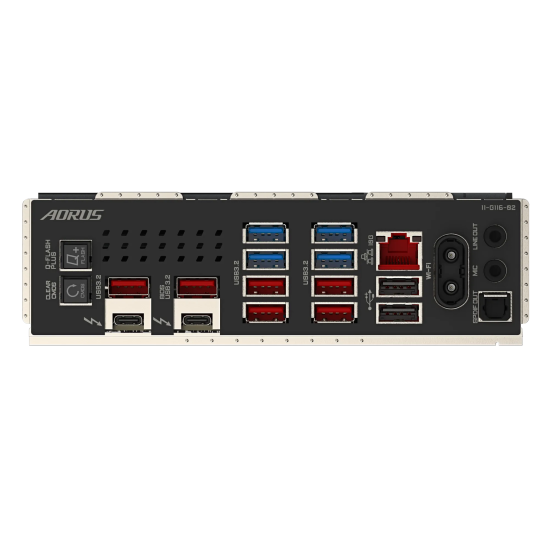

Connectors iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header4 x system fan headers;4 x system fan/water cooling pump headers;4 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;5 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;2 x USB 3.2 Gen 1 headers;2 x USB 2.0/1.1 headers;1 x noise detection header;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x HDMI port (Note);1 x power button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;2 x temperature sensor headers;Voltage Measurement Points;(Note) Actual support may vary by CPU;Back Panel Connectors: 1 x Q-Flash Plus button;1 x Clear CMOS button;2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports);6 x USB 3.2 Gen 2 Type-A ports (red);4 x USB 3.2 Gen 1 ports;2 x USB 2.0/1.1 por
Audio Realtek® ALC1220 CODEC;* The front panel line out jack supports DSD audio.;ESS ES9118 DAC chip;Support for DTS:X® Ultra;High Definition Audio;2/4/5.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
LAN Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
BIOS 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
OS Support for Windows 11 64-bit
Warranty 36 Months
