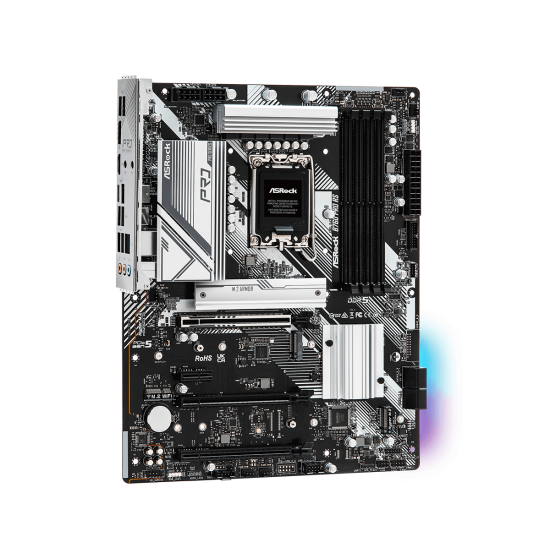

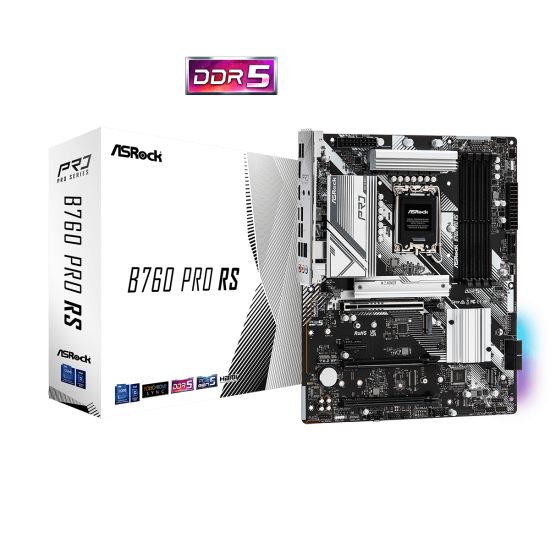

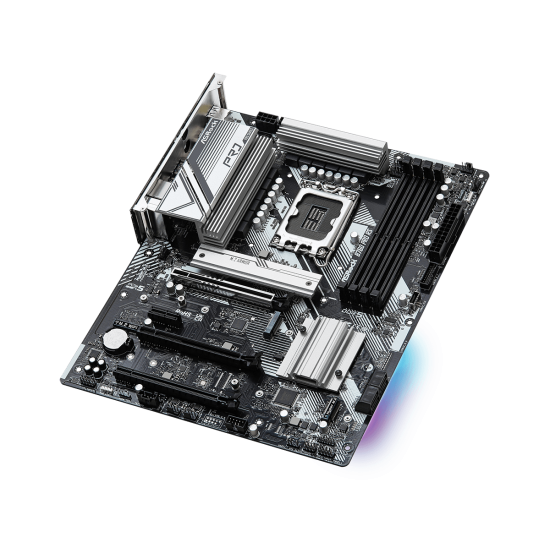

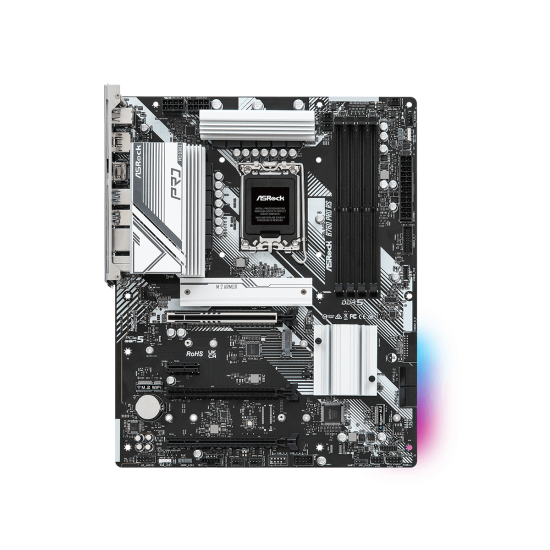

ASROCK B760 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 3xPCIEx16 1xPCIEx1

Memory type - Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 128GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
CPUs supported - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Technology (ABT)
Chipset - Intel® B760
Graphics - Intel® Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Expansion Slots CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*; - 1 x PCIe 3.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire™
Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

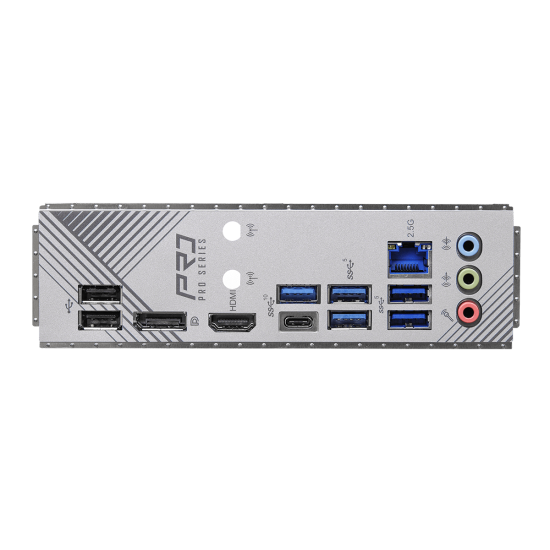

I/O - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 4 x USB 3.2 Gen1 Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors - 1 x eDP Signal Connector; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers*; - 2 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty 36 Months
