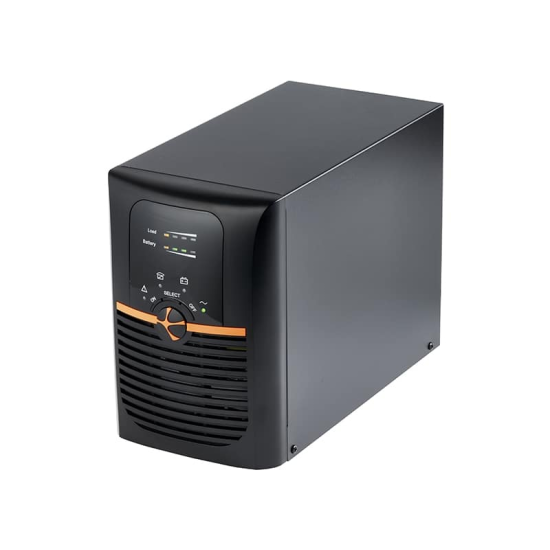

Manufacturer TUNCMATIK
Capacity 1000VA / 1000W
Type Online
Input Nominal Voltage: 200 / 208 / 220 / 230 / 240 VAC;Voltage Range:;Low Line Transfer: 160VAC ±5% @ 100% - 80% load, 140VAC ±5% @ 80% - 70% load, 120VAC ±5% @ 70% - 60% load, 110VAC ±5% @ 60% - 0 (<35°C);High Line Transfer: 300VAC ±5%;Frequency Range: 40Hz ~ 70 Hz;Phase: Single phase with ground;Power Factor: ≥0.99 @ nominal voltage (input voltage);THDi: 220-230VACda ≤%5
Output Output voltage: 200 / 208 / 220 / 230 / 240 VAC;Power Factor: 1;AC Voltage Regulation: ±1% (Batt. Mode);Frequenc Range:;Synchronized Mode: 47 ~ 53 Hz or 57 ~ 63 Hz;Battery Mode: 50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz;Overload: %105 - %110: UPS shuts down after 10min , %110 - %130: UPS shuts down after 1min , >%130: UPS shuts down after 3sec (<35°C);Crest Ratio: 3:1;Transfer Time: ≤%2 (linear load), ≤%4 (non-linear load);Waveform: Pure Sinewave
Battery Standard Model:;Battery Type: 12V 9AH;Battery Numbers: 2;Recharge Time: 4 hours recover to 90% capacity (Typical);Charging Current: 1.5A (Max);Charging Voltage: 27.4VDC ±%1;Long Run Model:;Battery Numbers: 2;Charging Current: 1.0A / 2.0A / 4.0A / 6.0A / 8.0A;Charging Voltage: 27.4 VDC ±%1
Environment Operating Temeperature: 0 - 50°C;Humidity: %20-90 (non-condensing);Noise Level: <50dBA @ 1 meter
Weight 9.8 kg
Dimensions 145 x 282 x 220 mm
