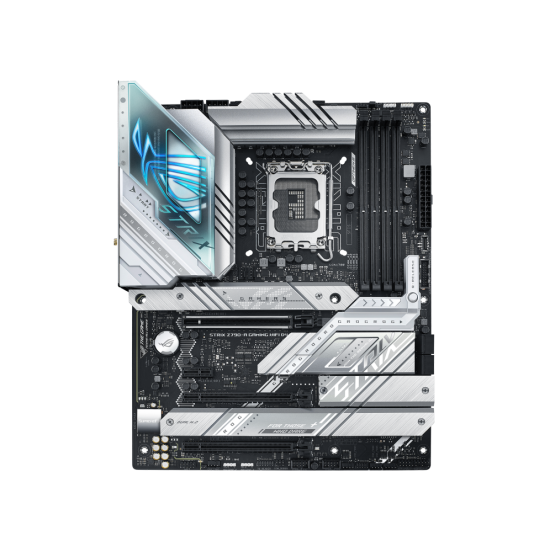

ASUS Z790 4xDDR4 4xSATA3 RAID HDMI DP 4xM2 GLAN 3xPCIEx16 1xPCIEx1 WiFi

Memory type 4 x DIMM, Max. 128GB, DDR4 DDR4; 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133; Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem III
CPUs supported Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® Z790 Chipset
Graphics 1 x DisplayPort**; 1 x HDMI® port***
Expansion Slots Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® Z790 Chipset; 2 x PCIe 4.0 x16 slots (support x4/x4 mode); 1 x PCIe 3.0 x1 slot
Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel® Z790 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
I/O 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A) ; 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Intel® 2.5Gb Ethernet port; 5 x Audio jacks ; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button ; 1 x Clear CMOS button
Connectors 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers ; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; 4 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) ; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header; 1 x Thunderbolt™ header
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features : - SupremeFX Shielding Technology; - Savitech SV3H712 AMP ; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover
LAN 1 x Intel® 2.5Gb Ethernet; ASUS LANGuard
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor;12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
OS Windows® 11, Windows® 10 64-bit
Other Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) ; Supports 2.4/5/6GHz frequency band*; Bluetooth® v5.3
Warranty 36 Months
