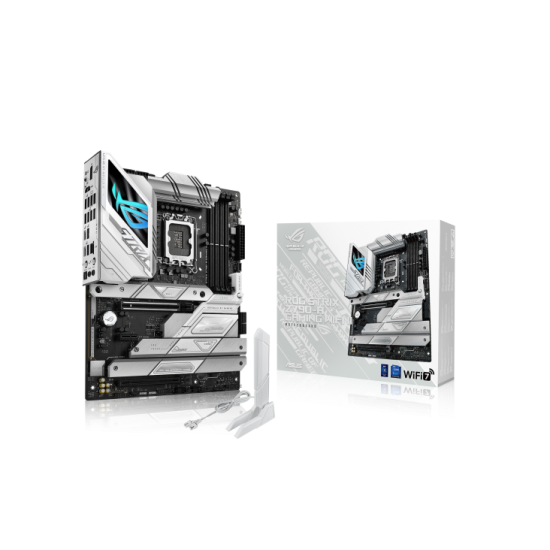

ASUS Z790 4xDDR5 4xSATA3 RAID HDMI DP 5xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi

Memory type 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; OptiMem II; ASUS Enhanced Memory Profile II (AEMP II)
CPUs supported Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® Z790 Chipset
Graphics 1 x DisplayPort**; 1 x HDMI™ port***
Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen)*; 1 x PCIe 5.0 x16 slot; Intel® Z790 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 slot
Storage Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel® Z790 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
I/O 1 x USB 20Gbps port (1 x USB Type-C®); 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®) ; 4 x USB 5Gbps ports (4 x Type-A); 4 x USB 2.0 ports (4 x Type-A) ; 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Intel® 2.5Gb Ethernet; 2 x Audio jacks ; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button ; 1 x Clear CMOS button
Connectors 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; 1 x 24-pin main power connector; 2 x 8-pin +12V power connector; 5 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; 1 x USB 20Gbps connector (supports USB Type-C® ) ; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x CPU Over voltage jumper; 1 x Front panel audio header (F_AUDIO); 1 x 20-3 pin system panel header with Chassis intrude function; 1 x Thermal sensor header; 1 x Thunderbolt™ (USB4®) header
Audio ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080*; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking; - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback on front panel; Audio Features ; - SupremeFX Shielding Technology ; - Savitech SV3H712 AMP ; - Audio jacks; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover
LAN 1 x Intel® 2.5Gb Ethernet; ASUS LANGuard
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor;12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
OS Windows® 11, Windows® 10 64-bit
Other Intel® Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be)**; Supports 2.4/5/6GHz frequency band***; Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.; Bluetooth® v5.4****
Warranty 36 Months
