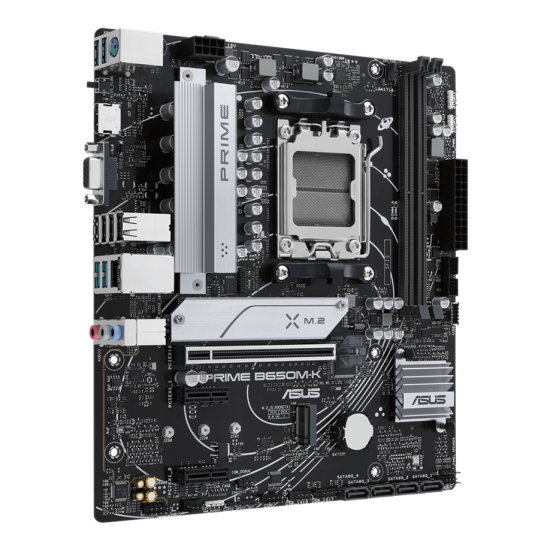

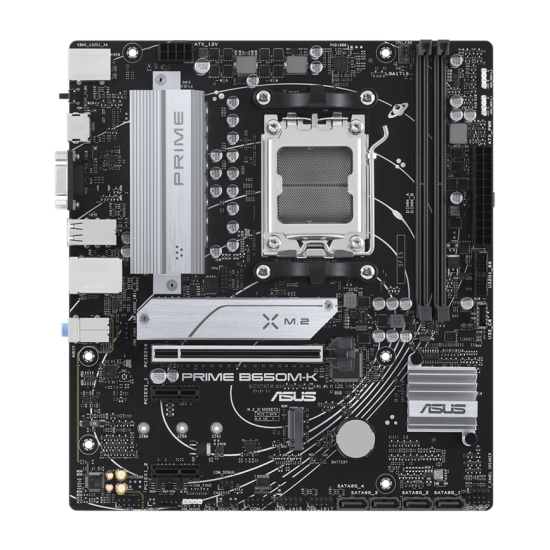

ASUS B650 4xDDR5 4xSATA3 RAID HDMI VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1

Manufacturer ASUS
Memory type 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000 /4800; ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II
Features ASUS 5X PROTECTION III; DIGI+ VRM; LANGuard; Overvoltage Protection; Safeslot Core+; Stainless-Steel Back I/O; ASUS Q-Design; Q-DIMM; Q-LED Core; Q-Slot; ASUS Thermal Solution; M.2 heatsink; VRM heatsink design ASUS EZ DIY; BIOS FlashBack™ button; BIOS FlashBack™ LED; Aura Sync; Aura RGB header; Addressable Gen 2 headers
CPUs supported AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650
Graphics 1 x VGA port; 1 x HDMI™ port
Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B650 Chipset: 2 x PCIe 4.0 x1 slots
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode); AMD B650 Chipset; 4 x SATA 6Gb/s ports

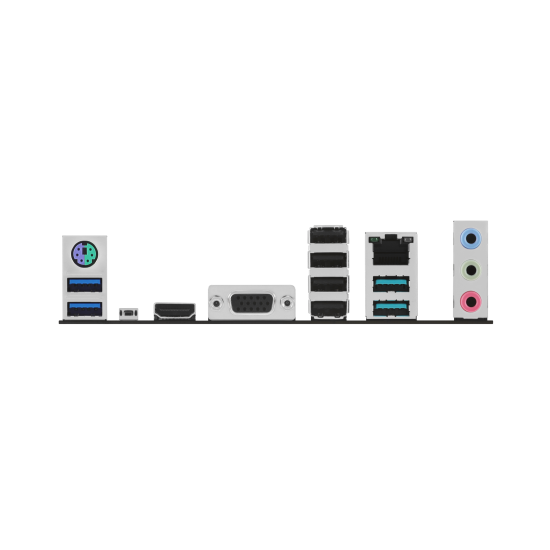

I/O Back Panel I/O Ports; 2 x USB 3.2 Gen 2 ports (2 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x VGA port; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button; 1 x PS/2 Keyboard/Mouse combo port;
Connectors Fan and Cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 2 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
LAN 1 x Realtek 2.5Gb Ethernet
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor, ( 24.4 cm x 22.1 cm )
OS Windows® 11, Windows® 10 64-bit
Warranty 36 Months
