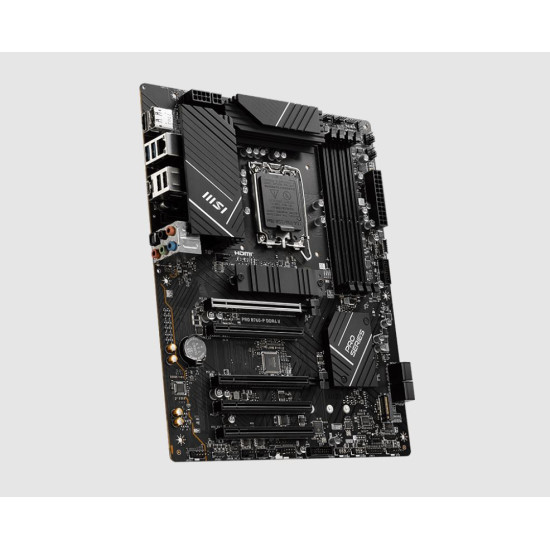

MSI B760 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 1XGLAN 5xPCIEx16

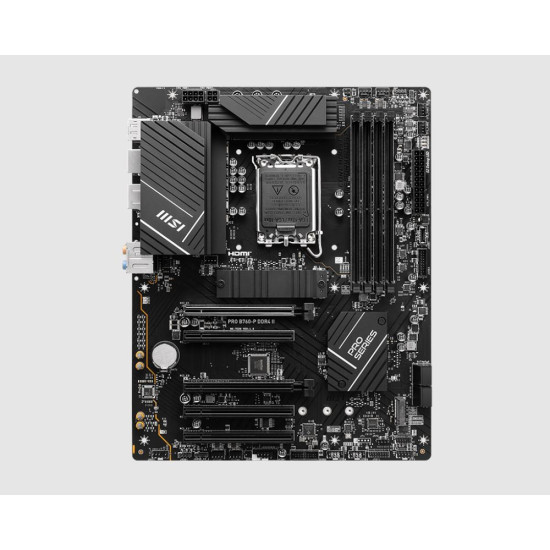

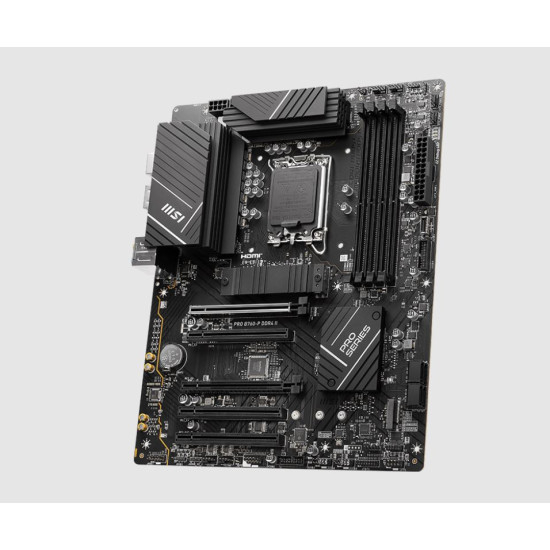

PRO B760-P II
1x HDMI; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*;
INTEL B760
5x PCIe x16 slots; • PCI_E1 slot (From CPU); • Supports PCIe 4.0 x16; • PCI_E2 slot (From B760 chipset); • Supports PCIe 3.0 x1; • PCI_E3 slot (From B760 chipset); • Supports PCIe 4.0 x4; • PCI_E4 slot (From B760 chipset); • Supports PCIe 3.0 x1; • PCI_E5 slot (From B760 chipset); • Supports PCIe 3.0 x1;
2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; 4x SATA 6G;
4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC); (4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC); (3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC); (2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP);

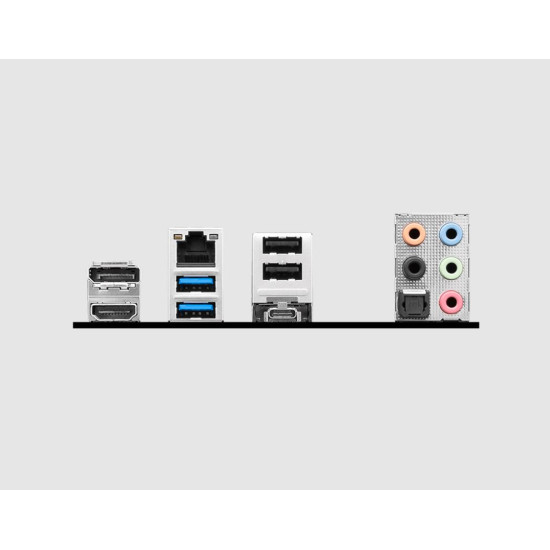

2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type C (Rear); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x TBT connector (JTBT, supports RTD3); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports;
•1x Front panel audio connector •2x System panel connectors; •1x Chassis Intrusion connector •1x TPM module connector; •1x Serial port connector •1x TBT connector (Supports RTD3);•1x 4-pin CPU fan connector ; •1x 4-pin water-pump fan connector; •5x 4-pin system fan connectors;
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output;
Realtek® RTL8125BG 2.5G LAN
1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
ATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm)
Support for Windows® 11 64-bit, Windows® 10 64-bit
Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
