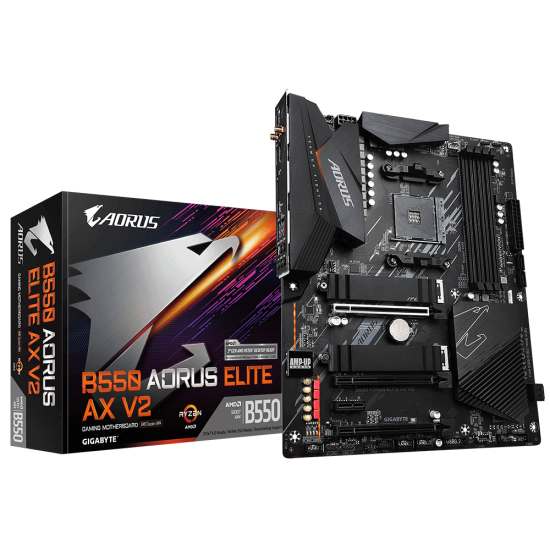

GB B550 4xDDR4 4xSATA3 RAID HDMI DP 2xM2 GLAN 3xPCIEx16 1xPCIEx1 WiFi

Memory type 4 DDR4 DIMM slots supporting system memory up to 128 GB (32 GB capacity per DIMM); 3rd generation AMD Ryzen processors ™: Support for DDR4 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz memory modules; 3rd generation AMD Ryzen processors Rade with Radeon graphics ™: Support for DDR4 4733 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200 memory modules / 2933/2667/2400/2133 MHz; Dual channel memory architecture; Support for ECC unbuffered memory modules DIMM 1Rx8 / 2Rx8; Support for non-ECC unbuffered memory modules DIMM 1Rx8 / 2Rx8 / 1Rx16; Support for AMD Memory Profile (AMP) / Extreme Memory Profile (XMP) profiles
CPUs supported AMD AM4 socket, support for AMD Ryzen processors 5000 5000 / 3rd generation Ryzen series ™ and 3rd generation Ryzen ™ with Radeon graphics ™
Chipset AMD B550
Graphics Integrated 3rd generation AMD Ryzen processors with Radeon graphics: 1 DisplayPort port supporting a maximum resolution of 5120x2880 at 60 Hz; * Support for DisplayPort version 1.4, HDCP 2.3 and HDR.; 1 HDMI port supporting maximum resolution 4096x2160 @ 60 Hz; * Support for HDMI version 2.1, HDCP 2.3 and HDR.; Maximum shared memory - 16 GB
Expansion Slots 1 PCI Express x16 slot (PCIEX16) integrated in the processor: - 3rd generation AMD Ryzen processors ™ support x16 mode on PCIe 4.0; - 3rd generation AMD Ryzen processors Rade with Radeon graphics ™, supporting PCIe 3.0 in x16 mode; * For For optimal performance when installing only one PCI Express graphics card, please install it in the PCIEX16 slot. 1 PCI Express x16 slot (PCIEX2) integrated in the chipset: - Support for PCIe 3.0 x2 mode; 1 PCI Express x16 slot (PCIEX1_2) integrated in the chipset: - Supports PCIe 3.0 x1 mode; 1 PCI Express x1 slot (PCIEX1_1) integrated in the chipset: - Supports PCIe 3.0 x1 mode
Storage 1 M.2 connector (M2A_CPU), integrated in the processor, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd generation AMD Ryzen processors ™ supports SATA and PCIe 4.0 x4 / x2 SSDs; - New generation of AMD Ryzen processors Rade with Radeon graphics ™ supports SATA and PCIe 3.0 x4 / x2 SSD drives; 1 M.2 connector (M2B_SB), integrated in the chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Support for SATA and PCIe 3.0 x4 / x2 SSDs; 4 SATA 6Gb / s connectors integrated in the chipset: - Support for RAID 0, RAID 1 and RAID 10
I/O 1 DisplayPort port; 1 HDMI port; 2 antenna connectors SMA (2T2R); 2 USB ports 3.2 Gen 2 Type-A (in red); 3 USB ports 3.2 Gen 1; 2 USB 2.0 / 1.1 ports; 1 Q-Flash Plus button; 1 RJ-45 port; 1 S / PDIF Out optical connector; 5 audio jacks
Connectors 1 main 24X power connector ATX; 1 8-pin ATX 12V power connector; 2 M.2 Socket 3 connectors; 4 SATA 6Gb / s connectors; 1 connector for the CPU fan; 1 connector for the CPU water cooling fan; 3 connectors for system fans; 1 LED strip connector / REG LED strip around the CPU cooler; 2 connectors for addressable LED strips; 2 connectors for RGB LED strips; 1 front panel connector; 1 audio connector on the front panel; 1 USB Type-C port с, with USB 3.2 Gen support 1; 1 USB 3.2 Gen connector 1; 2 USB 2.0 / 1.1 connectors; 1 connector for Trusted Platform Module (TPM) (2x6 pins, only for GC-TPM2.0_S module); *The TPM function is optional, depending on regional regulations; 1 Clear CMOS jumper
Audio Realtek ® ALC1200 codec; High Definition Audio; 2/4 / 5.1 / 7.1 channels; Supports S / PDIF Out
LAN LAN chip Realtek® 2.5GbE (2.5 Gbit / 1 Gbit / 100 Mbit)
BIOS 1 flash chip 256 Mbit; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX form factor; 30.5 cm x 24.4 cm
OS Windows 10 64-bit support
Other Intel® Wi-Fi 6 AX200: WIFI a, b, g, n, ac with Wave 2, ax functionalities, support for two 2.4 / 5 GHz frequency bands; BLUETOOTH 5; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data transfer speed
Warranty 36 Months
